25 Oct Capacitive Screen Touch For 2018 Mercedes F/L S Class W222 only
Posted at 16:31h
in
Mercedes-Benz
by INDIWORK
2018 Mercedes-Benz Face Lift S-Class (W222)
The Facelift Mercedes S-Class has changed both internal and external design.
What we have noticed is the interior that has been transformed into a complete Digital Cockpit.
The Digital Cockpit, which combines a dashboard and a monitor, looks like the W213.
However, the Passenger Air bag check display, which is displayed between the digital instrument panel and the monitor, makes it impossible to use the existing W213 exclusive touch panel.
So we made the W222 exclusive touch screen panel.
Capacitive Touch Panel For Mercedes E, S-Class(W213/W222)
(Product Name : 222S-Touch)
ㆍPerfect compatible with OEM monitor of the Mercedes-Benz New E, S-class (W213-Digital Cockfit, W222)
ㆍCapacitive Touch Panel like smartphone.
ㆍFull glass type.
ㆍIt has excellent transmittance and touch perception, luxurious appearance, and rugged reliability because the designed with full glass.
ㆍImplement a clean and vivid color by clear type.
ㆍProduced exclusively from INDIWORK.
The Passenger Air bag check area originally displayed on the monitor gave a 60% shade. So, there is no sense of heterogeneity when used for W213.
This is a capacitive touch panel for only Mercedes Benz S-Class 2018 Face Lift with 99.9% transmittance.
It is a high-quality screen touch panel made of 100% glass.

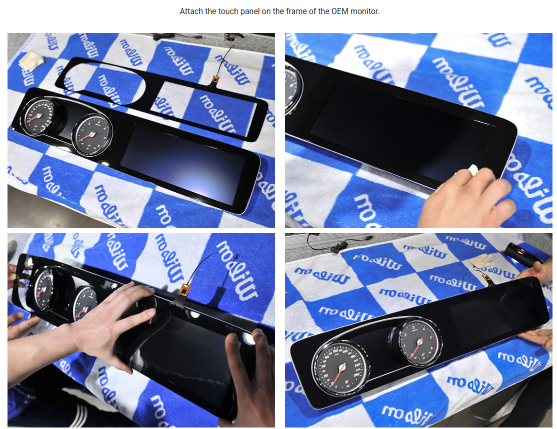

Disassemble the original monitor to install the touch panel.
It is Digital Cockpit with installed touch panel.
The area between the instrument cluster and the monitor is the passenger air bag area.
This is good visibility, and elegant because it has a little black coating.
Sami alqurashi
Posted at 10:09h, 29 MayIst fit w222 2015?
How much dose it cost by $
Do you dilever it to Saudi Arabia?
INDIWORK
Posted at 10:52h, 29 MayHello, you can purchase this item from this link. We ship to the world via DHL Express. You can pay by PayPal, and the shipping cost is displayed by entering your address on the checkout page. Thank you.
Jimmy
Posted at 00:34h, 26 JulyDoes my s500 2014 can change the 2019 new display
INDIWORK
Posted at 11:36h, 27 JulyHello. In the case of 2014 S-class, the monitor and instrument panel are separated, and there is a frame. The ‘222S full glass touch panel’ is made of flat glass, so it cannot be used in 2014 S500.

You should use a BENZ-12.1-inch touch panel. but we do not have a capacitive touch panel for 12.1 inch, we have only a resistive touch panel.
Benz-12.1″ Capacitive Touch Panel→
Thank you.
Filadelfo
Posted at 17:27h, 23 AprilSalve il pannello 222S-Touch, su mercedes w213 deve essere installato sopra il display originale dell’autovettura ? oppure deve essere sostituito il vetro originale con il pannello touch?
INDIWORK
Posted at 18:31h, 23 AprilHello, the original glass is not removed, and the 222S touch panel must be attached on the original glass. Same as picture.

Paul
Posted at 05:19h, 25 OctoberI’m interested in the touch screen and adapter to support android auto/apple carplay. I’m curious where the connection from the touch screen goes to? I have a 2015 S550 without any touch screen so wondering if there’s some additional hardware needed to support the touch screen?
bogdan
Posted at 00:10h, 19 Augustthere is any other hardware to install this touch screen on w222 2019?
thank you
INDIWORK
Posted at 10:31h, 19 AugustHello, thank you for your interest in our product.
Please note that installing this touch panel does not make the original Mercedes system touchscreen-enabled.
The panel is an additional accessory mainly used when connecting external devices such as navigation units or AI boxes, allowing you to control them via touch.
For example, when combined with the AirTouch interface, you can use the Carlinkit Pro with touch functionality.
If your Mercedes already has OEM Apple CarPlay, the Carlinkit Pro itself can run Android-based applications simply by plugging it into the USB port.
However, since the W222 system does not support touch input, adding the touch panel together with the AirTouch interface allows you to control Carlinkit Pro by touch.
Here are some reference links with installation examples:
AirTouch I/F: https://indiworkshop.com/shop/parts/touch-panel/air-touch-if-for-using-to-touch-by-ai-box-t-box/
Touch Panel: https://indiworkshop.com/shop/parts/touch-panel/capacitive-touch-screen-for-mercedes-benz-w213-w222/
Carlinkit Pro: https://www.amazon.com/Carlinkit-128G-Bulit-Ultra-Thin-Bluetooth/dp/B0BCPJVYWZ/ref=sr_1_13?crid=3IGHXCWVP5OQL&dib=eyJ2IjoiMSJ9.lcDI5Y_wk5iGbL022YIhAexqDiazReND3bkHLTxwIqO8u4TWjKfHJGl8QLkFDUcmNhKr6a18vJt2zx2hM_r-F2ihN1QG7HsVvanazN4ypnDERjmlhTO8DEZLY6jmUtrHhOxF_Q0pDgm5l1L4joJhWErjS9tBt8tNheMDRddxvZgKlQ9hOa61qx8bkw00_tZB79N-9_LzgxVeD0frEi84fFUmlyqYgjAYiSaao3a97NU.FhEcJyq2gD9-J5wa0YBNWan-rkuu6zckZx1jk1JwoEs&dib_tag=se&keywords=carlinkit&qid=1755566639&sprefix=carlinki%2Caps%2C349&sr=8-13
